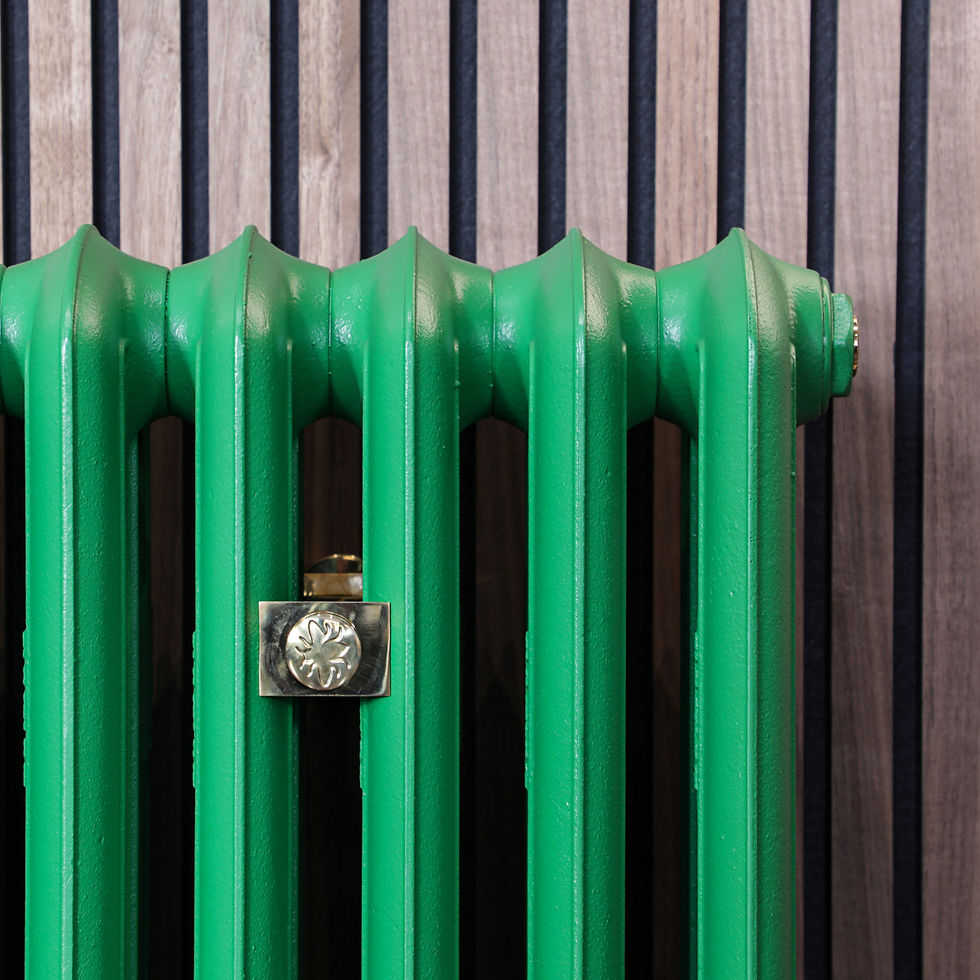

Emmeline III Cast Iron Radiator | Castrads

Name: Emmeline III Cast Iron Radiator | Castrads
Brand: Castrads

Introducing the Emmeline III Cast Iron Radiator by Castrads. Available in 3 Heights. Their 21st Century Design features a scalloped topline, gentle contours and refined feet, and is their own take on a long-established school house style. With its exceptional heat output, the Emmeline III is an excellent choice for those looking for a radiator that combines functionality and aesthetics.

Delivered fully assembled up to 16 sections for the 470mm height, 11 sections for the 670mm height & 8 sections for the 870mm height - see 'Longer Lengths' section below.

Radiator Sizes and Output (Per Section)

Single Section Height	470mm	670mm	870mm
Single Section Width	66.5mm	66.5mm	66.5mm
Single Section Depth	230mm	230mm	230mm
BTU ∆T 50˚C	277	383	503
Watts ∆T 50˚C	81	112	148

Other Heat Outputs

	470mm	670mm	870mm
BTU ∆T 60˚C	351	485	641
Watts ∆T 60˚C	103	142	188
BTU ∆T 30˚C	147	198	259
Watts ∆T 30˚C	43	58	76

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

Castrads offer an unrivalled range of finishes including their exclusive 'Painted' Signature Range, 'Tumbled' Bare Metal range and their 'Polished' Hand Finished Bare Metal Range.

Alternatively, they can also offer any 'Painted' RAL colour or Designer finishes from Farrow & Ball, Little Greene & Benjamin Moore and others

View more information about bespoke finishes here...
These radiators will be assembled, painted/polished, and fully tested in Castrads' Manchester, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-up paint may be supplied upon request.
Delivered in around 6-8 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
