Art Deco Cast Iron Radiator | Arroll

Name: Art Deco Cast Iron Radiator | Arroll
Brand: Arroll

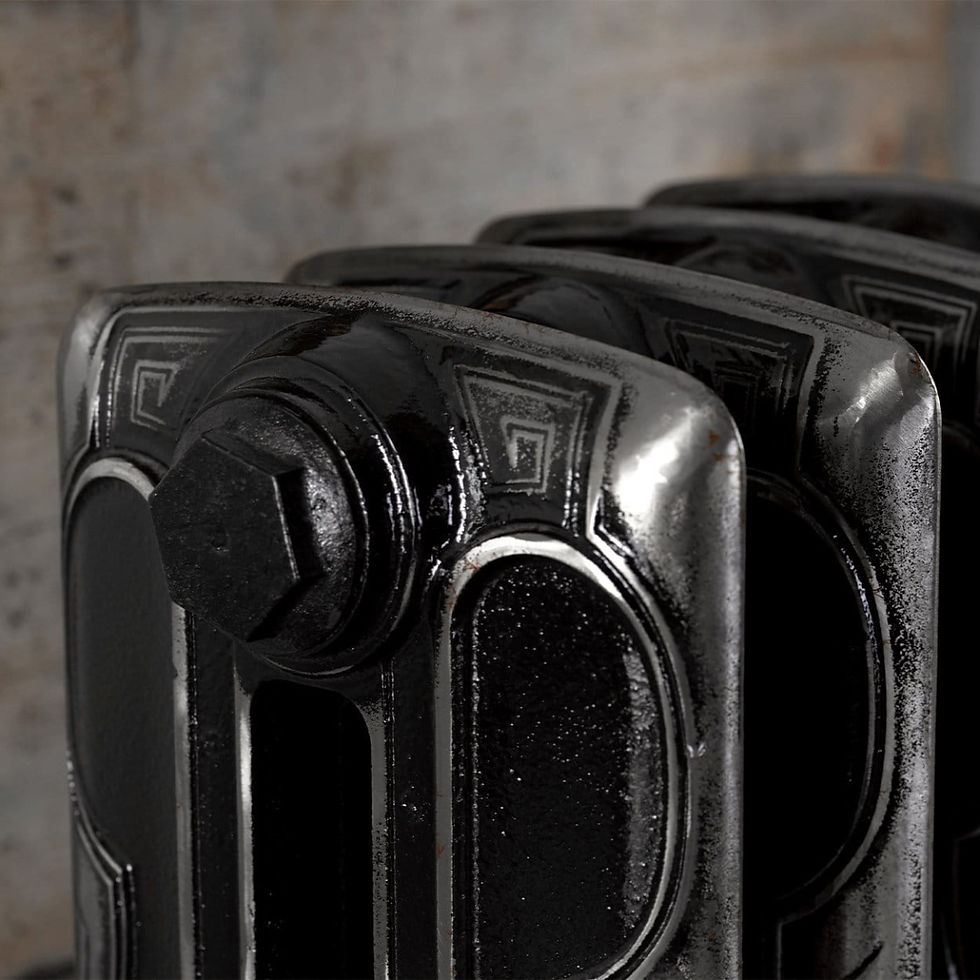

Available in two heights the Arroll Art Deco Cast Iron Radiator range boasts exuberant detail of the roaring 1920s. A tall and deep 870 model and a shorter and narrower 650 model. A decade of indulgence in the new style of Jazz, dance, and popular fashion, the Art Deco is sure to add a touch of 20s glamour to any space.

Delivered fully assembled up to 14 sections - see 'Longer Lengths' section below.

Radiator Sizes and Output (Per Section)

Single Section Height	649mm	869mm
Single Section Width	85mm	85mm
Single Section Depth	145mm	220mm
BTU ∆T 50˚C	273	532
Watts ∆T 50˚C	80	156

Other Heat Outputs

	649mm	869mm
BTU ∆T 60˚C	379	678
Watts ∆T 60˚C	111	198
BTU ∆T 30˚C	143	273
Watts ∆T 30˚C	42	80

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

All Arroll radiators come in a 'Raw' finish, with a basic primer applied in the factory, and will require a fresh coat of primer before it can be overpainted.

Your radiator can be supplied in this raw state or Arroll can apply a black or white 'Primer' finish, for you to paint yourself.

Why not let Arroll's expert painters finish your look with one of their popular 'Painted' Colours or any of the thousands of RAL or Colour Matches they can do. Alternatively, you can choose one of their 'Painted' Authentic Designer paints from Farrow & Ball & Little Greene, 'Specialised' or 'Polished' finishes to give you a classic, modern or contemporary look.

View more information about bespoke finishes here...
These radiators will be assembled, painted/polished, and fully tested in Arroll's Belfast, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-Up paint is supplied free of charge as standard to cover the new gasket when joining.
Delivered in around 4-5 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Arroll charge per pallet & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
