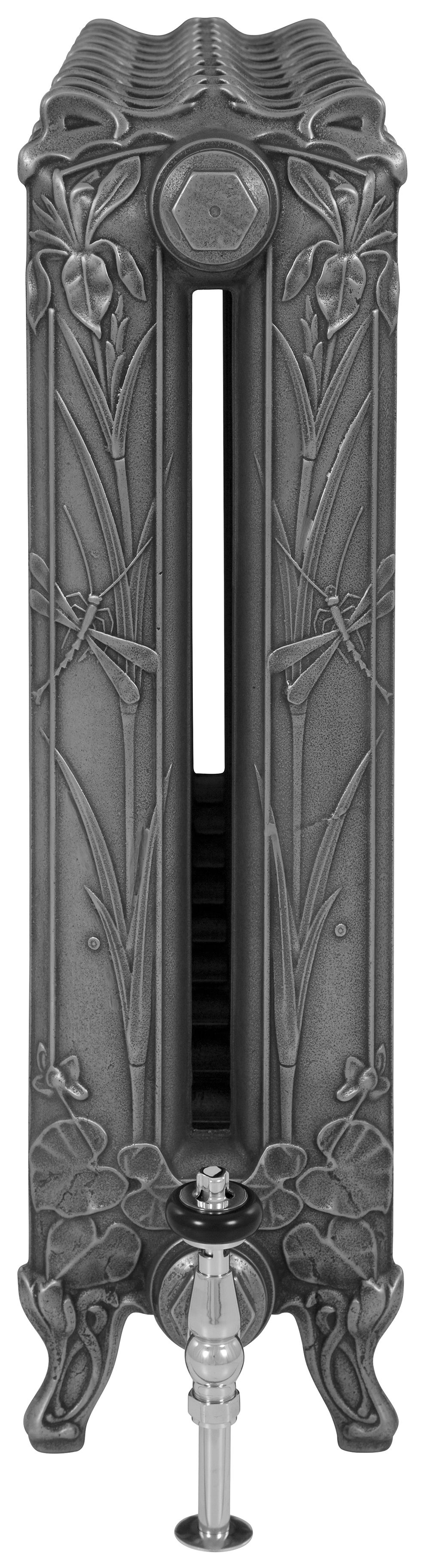

Dragonfly Cast Iron Radiator | Carron

Name: Dragonfly Cast Iron Radiator | Carron
Brand: Carron
Price: 92.5 GBP
Availability: InStock

The Carron Dragonfly Cast Iron Radiator, with its graceful lines and organic ornamental motifs, is a true Art Nouveau design. Alive with natural decoration, this beautiful and unique radiator makes a striking addition to any room.

Delivered fully assembled up to 13 sections - see 'Longer Lengths' section below.

Radiator Sizes and Output (Per Section)

Single Section Height	790mm
Single Section Width	85mm
Single Section Depth	225mm
BTU ∆T 50˚C	462
Watts ∆T 50˚C	136

Other Heat Outputs

	790mm
BTU ∆T 60˚C	578
Watts ∆T 60˚C	169
BTU ∆T 30˚C	245
Watts ∆T 30˚C	71

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

All Carron's cast iron radiators are in a raw dark primer to start with, which will require a further primer before you can paint it, if you purchase the radiator in this state.

When painted the sections are freshly primed in either a light or dark primer (depending on the chosen final finish) before the radiator is assembled. The radiator is then expertly 'Painted' from one of Carron's Popular Finishes, or any of the thousands of RAL, Farrow & Ball or other designer colours. Alternatively, you can choose one of their 'Specialised' or 'Polished' finishes to give you a classic, modern or contemporary look.

For any of their unique finishes, please contact us for a price.

View more information about bespoke finishes here...
These radiators will be assembled, painted/polished, and fully tested in Carron's Lincolnshire, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-Up paint is supplied free of charge as standard to cover the new gasket when joining.
Delivered in around 4 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
