Dubal 30 | White & Colour | Reversible Aluminium Radiator | MHS

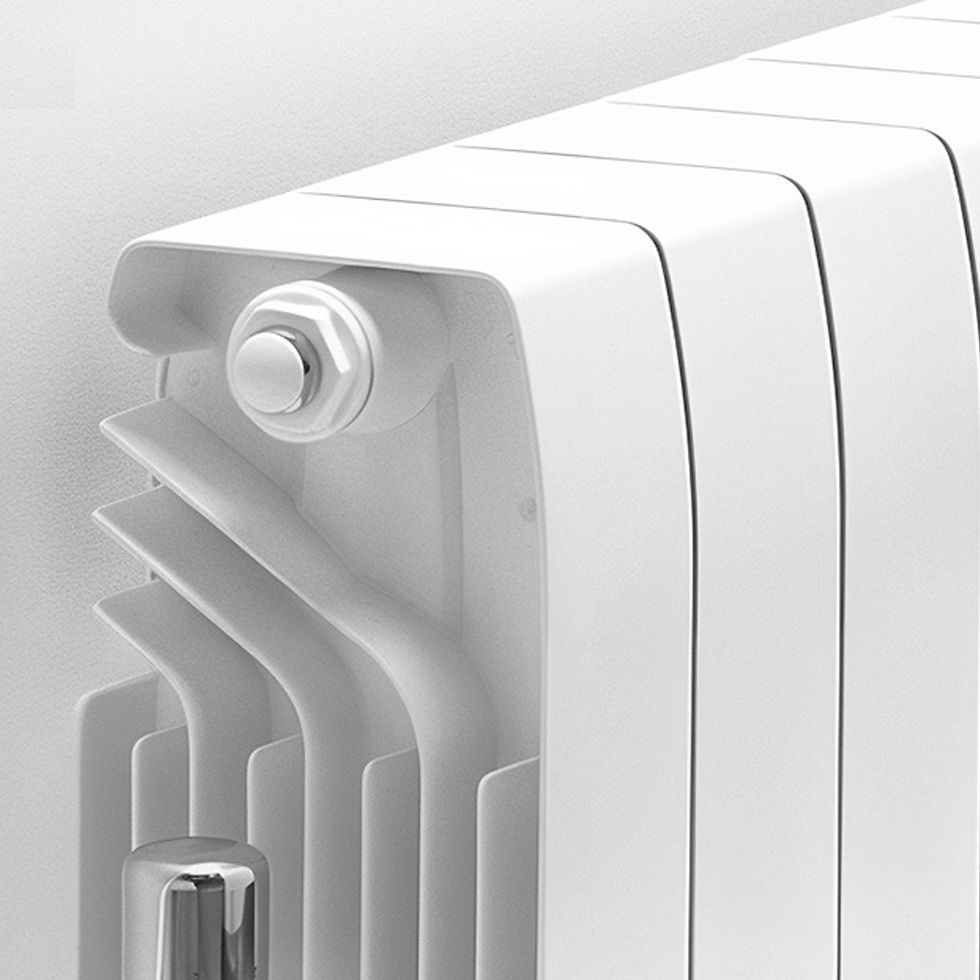

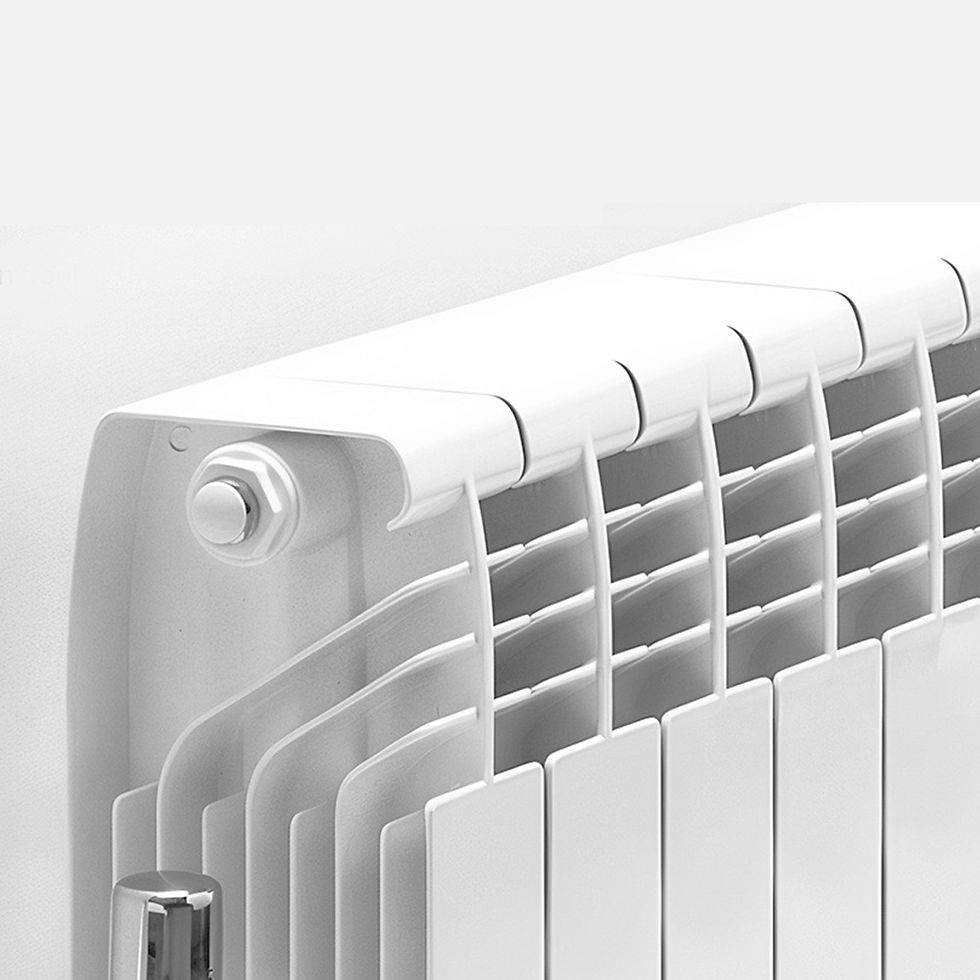

The Dubal 30 is a new unique die-cast aluminium radiator, providing versatility when a low-level radiator is required. The radiator is reversible, providing a choice of flat-fronted or open-fronted style. The Dubal 30 can be paired with free-standing feet (please contact us to add feet) ideal for when the radiator is positioned in front of the glazing.

Made in Italy
Supplied with wall brackets.
Can be supplied in White or Colour Chart 2 options, for Colour Match options please contact us directly
Free-standing brackets & Colour Matching are optional extras
10-year manufacturer warranty.
3-5 days for white
10-15 working day delivery.*

* Delivery Times are subject to change, please get in touch for more accurate lead times. Radiators are delivered kerbside on a pallet.

Height	288mm
Width	260mm to 2020mm
Type	Central heating
Output	246 watts to 2075 watts (central heating)

Open Front		Delta 50
Section	W mm	D mm	Watts	BTU	Dry (kg)	W/C(l)
3	260	147	249	850	4.35	0.81
4	340	147	332	1133	5.80	1.08
5	420	147	415	1416	7.25	1.35
6	500	147	498	1699	8.70	1.62
7	580	147	581	1982	10.15	1.89
8	660	147	664	2266	11.60	2.16
9	740	147	747	2549	13.05	2.43
10	820	147	830	2832	14.50	2.70
11	900	147	913	3115	15.95	2.97
12	980	147	996	3398	17.40	3.24
13	1060	147	1079	3682	18.85	3.51
14	1140	147	1162	3965	20.30	3.78
15	1220	147	1245	4248	21.75	4.05
16	1300	147	1328	4531	23.20	4.32
17	1380	147	1411	4814	24.65	4.59
18	1460	147	1494	5098	26.10	4.86
19	1540	147	1477	5381	27.55	5.13
20	1620	147	1660	5664	29.00	5.40
21	1700	147	1743	5947	30.45	5.67
22	1780	147	1826	6230	31.90	5.94
23	1860	147	1909	6514	33.35	6.21
24	1940	147	1992	6797	34.80	6.48
25	2020	147	2075	7080	36.25	6.75

Delivery in around 3-5 working days for white

Delivered in around 10-15 working days for colour, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses, there is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by MHS's transport department that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
