Grace 6 Column Cast Iron Radiator | Castrads

Name: Grace 6 Column Cast Iron Radiator | Castrads
Brand: Castrads

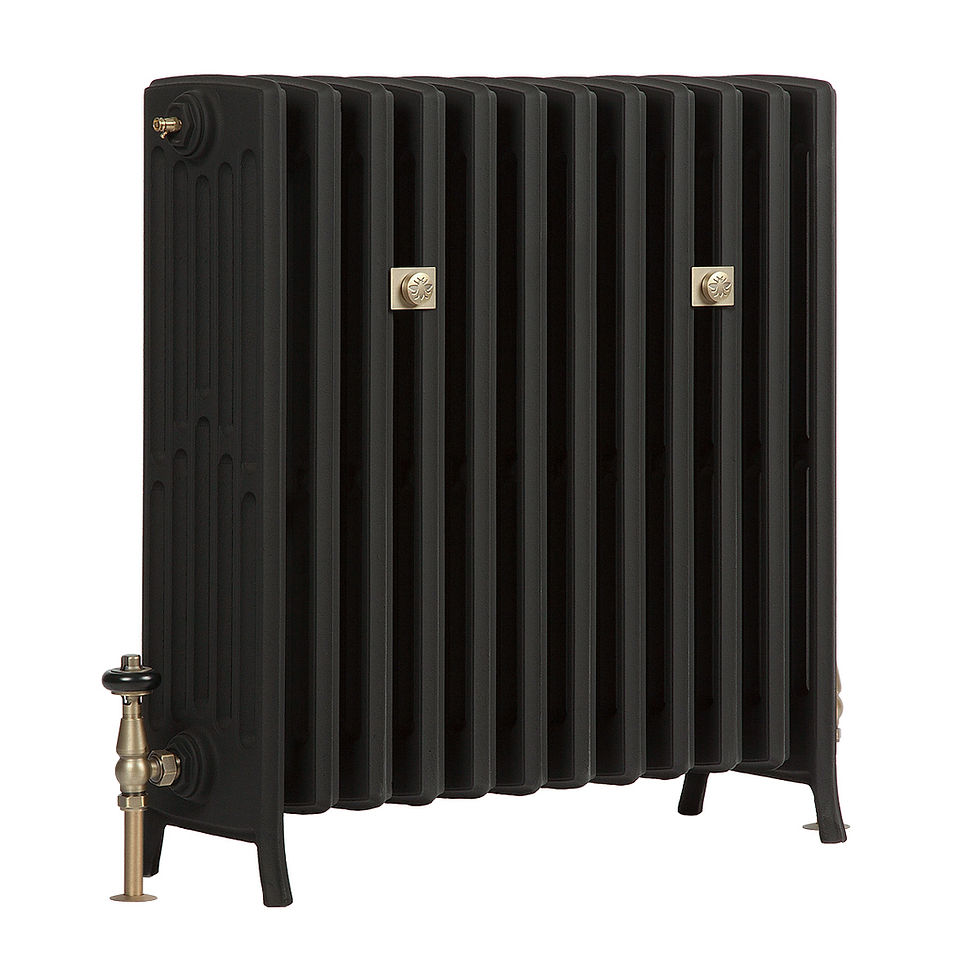

The Grace 6 Column Cast Iron Radiator from Castrads has a distinctive design with a fluted profile derived from a model originally cast by Crane in Chicago, Illinois. Available in 4 Heights. It is a low-level column radiator with a small footprint. A slender model that sits well under windows where space is tight. Staggered spacing between the columns adds extra interest to the side view.

Delivered fully assembled up to 15 sections for the 485mm height, 12 sections for the 660mm height, 10 sections for the 760mm height & 8 sections for the 960mm height - see 'Longer Lengths' section below.

Radiator Sizes and Output (Per Section)

Single Section Height	485mm	660mm	760mm	960mm
Single Section Width	60mm	60mm	60mm	60mm
Single Section Depth	254mm	252mm	254mm	250mm
BTU ∆T 50˚C	301	407	478	591
Watts ∆T 50˚C	88	119	140	173

Other Heat Outputs

	485mm	660mm	760mm	960mm
BTU ∆T 60˚C	385	521	612	757
Watts ∆T 60˚C	112	152	179	221
BTU ∆T 30˚C	163	221	259	321
Watts ∆T 30˚C	47	64	75	94

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

These radiators will be assembled, painted/polished, and fully tested in Castrads' Manchester, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-up paint may be supplied upon request.
Delivered in around 6-8 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
