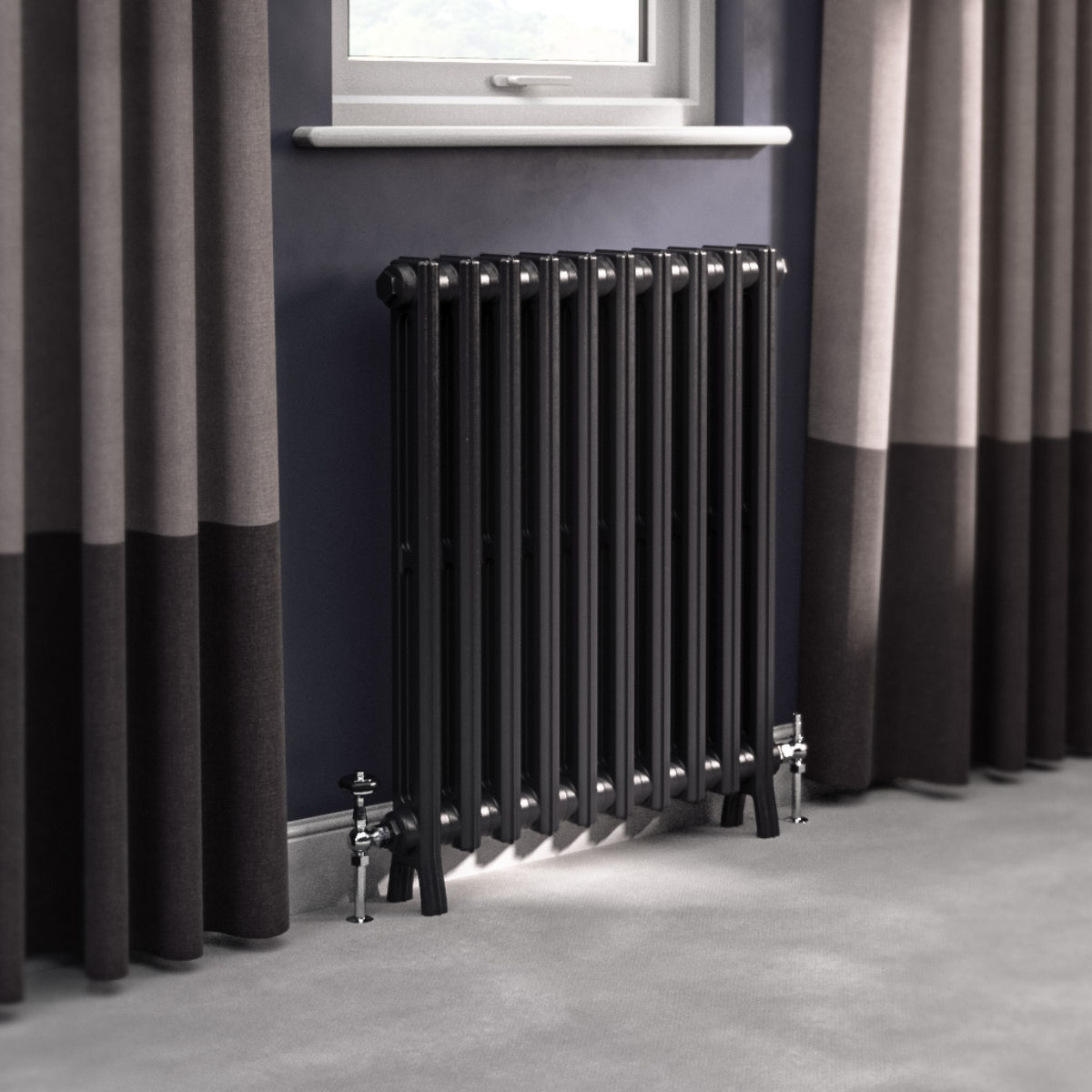

Ionic 2 Column Cast Iron Radiator | MHS

Name: Ionic 2 Column Cast Iron Radiator | MHS
Brand: MHS

The versatile Ionic 2 Column Cast Iron Radiator from MHS, previously known as the Steyning cast iron column radiator combines authentic traditional styling with modern reliability and comfortable heating. The 2 Column model is perfect for tighter spaces like ensuites and hallways.

Delivered fully assembled up to 20 sections, apart from the 1040mm tall model that is fully assembled up to 17 sections - see 'Longer Lengths' section below.

Radiator Sizes and Output (Per Section)

Single Section Height	490mm	640mm	740mm	1040mm
Single Section Width	60mm	60mm	60mm	60mm
Single Section Depth	70mm	70mm	70mm	70mm
BTU ∆T 50˚C	140	157	211	252
Watts ∆T 50˚C	41	46	62	74

Other Heat Outputs

	490mm	640mm	740mm	1040mm
BTU ∆T 60˚C	177	201	269	324
Watts ∆T 60˚C	51	58	78	95
BTU ∆T 30˚C	75	85	114	137
Watts ∆T 30˚C	21	24	33	40

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

All MHS's cast iron radiators can be supplied in a 'Primer' finish for you to then paint yourself.

Why not let MHS's expert painters finish your look with one of their 'Painted' classic finishes, or any of the hundreds of RAL colours, or a colour match to a designer paint finish. Alternatively, you can choose one of their 'Specialised' Special Effect finishes to give you a classic, modern or contemporary look.

View more information about bespoke finishes here...
These radiators will be assembled, painted/polished, and fully tested in MHS's Essex, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-Up paint is supplied free of charge as standard to cover the new gasket when joining.
Delivered in around 3-4 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Free Delivery to most UK addresses & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
