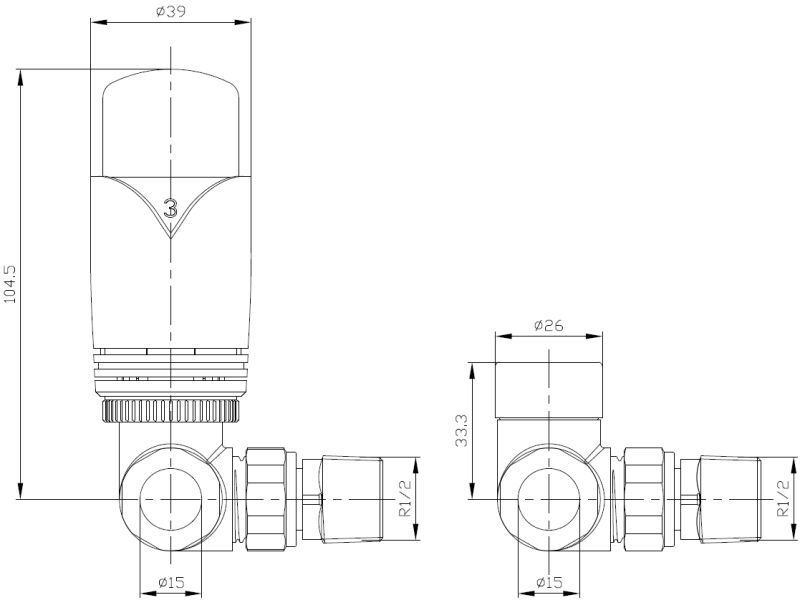

Realm Modern Thermostatic Radiator Valve Set | Corner | West

SKU: W-REALM-2-CR-W

Made to a high quality, the Realm Corner Thermostatic wheel-head and lock-shield radiator valves are constructed from brass and have a heavy, smooth polished finish and feature variable pitch adjustable couplers.

Height (mm)	116.0
Width (mm)	76.0
Depth (mm)	50.0
Material	Brass
Finish	White
Boxed Weight	0.630 kg
Unboxed Weight	0.580 kg
Warranty	6 year manufacturer's
Style	Corner thermostatic radiator valve pair
Compression Inlet(s)	15mm
Outlet(s)	15mm compression
Radiator Coupler	Variable pitch ½″ BSPT male thread
Orientation	Corner
Comprises Of	One wheel head and one lockshield
Includes	Decorator's cap

We recommend all TRV's are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV's from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
