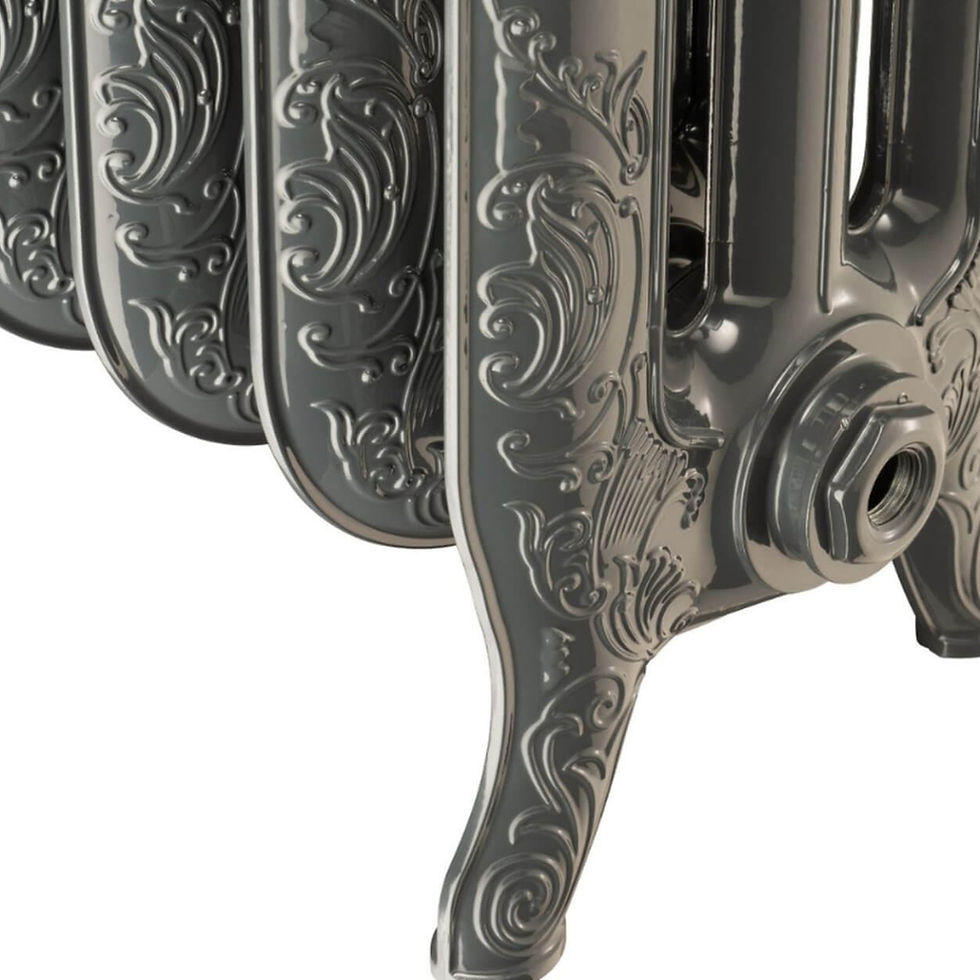

Rococo 3 Column Aluminium Radiator | Anthracite | Arroll

Introducing the NEW Arroll Aluminium Ornate Radiator in Anthracite RAL 7016. Arroll have created a truly unique Aluminium Version of their popular Rococo 3 column cast iron radiator model, bringing cast iron style into the 21st century. The Aluminium, Bi metal radiator has an Aluminium Exterior with steel tubing inside to avoid corrosion and metal transference. With three heights and three widths available, as shown below.

Ideal for use with Central Heating, Heat Pumps and Electric Elements
Lightweight, Cost Effective and Corrosion Resistant.
Made from 60% Recyclable Material.
Uses 60% less water for the same heat output as cast iron
Also Available in White
Depth 250mm
Electric radiators supplied with electric element, automatic air vent and inhibitor

Height (mm)	Sections / Length (mm)	BTU Output ∆T 50˚C	Watts Output ∆T 50˚C	BTU Output ∆T 30˚C	Watts Output ∆T 30˚C
470	10 / 723	2701	792	1391	408
470	12 / 862	3241	950	1670	490
470	15 / 1070	4051	1188	2087	612
770	10 / 723	4706	1380	2397	703
770	12 / 862	5647	1656	2877	844
770	15 / 1070	7059	2070	3596	1055

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

With our Easy-Fit Electric Pack, it's simple to turn these aluminium radiators into an electric heating solution for your space. Included in your pack is your Electric Element, either our digital remotely controlled H+H Eco or our HGT traditional manually controlled, which come ready to be either wired into a plug or hard-wired by a qualified person. Plus an automatic air vent in chrome and inhibitor.

Our HGT traditional, manually controlled elements come in White, Anthracite, Gold or Black.

Our H+H digital, remotely controlled elements come in White or Anthracite.

Height Length Element

470mm 723mm 600W

470mm 862mm 900W

470mm 1070mm 1200W

770mm 723mm 900W

770mm 862mm 1200W

770mm 1070mm 1200W

The traditional HGT Manually Controlled Elements come with three heat settings and a frost protection mode. This energy saving model monitors the water temperature and turns itself off once the radiator reaches the set temperature. Perfect for use everywhere in the home.

The Digital H+H Remotely Controlled Element is our ECO Design Electric element with full water temperature control from 10-65 ° C. Can be programmed daily and weekly. Has a turbo/fast drying mode of 1,2, or 3 hours. It comes with a remote that also doubles as an air temperature sensor, enabling the element to keep your room at a stable temperature. Also is compatible with Heatpols H+P Programmer, perfect for controlling electric heating throughout your home.

Radiator Filling Instructions

Traditional Manual Controlled HGT Element Instructions

Digital Remote Controlled H+H Element Instructions
Delivered in around 2-3 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Arroll charge per pallet & up to 4 standard radiators can be shipped on one pallet. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
