Saint Paul Cast Iron Radiator | Paladin

Name: Saint Paul Cast Iron Radiator | Paladin
Brand: Paladin

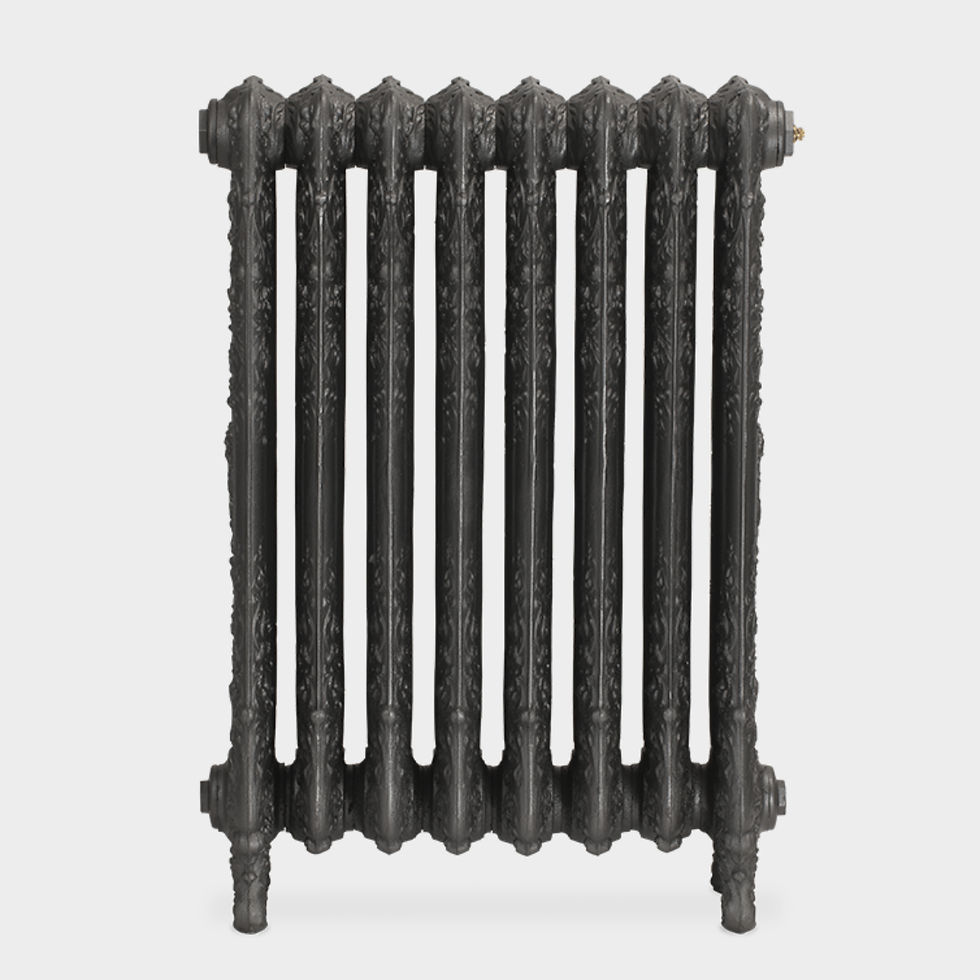

The Saint Paul Cast Iron Radiator from Paladin is a truly remarkable radiator combining cherubs, dragons and lions intertwined together with vines. It was originally manufactured in 1842 by the American Radiator Company and was described by them in their sales catalogue of 1897 as "a work of art in iron". The Saint Paul cast iron radiator is the perfect choice for a dramatic centrepiece in any room setting.

Delivered fully assembled up to 12 sections - see 'Longer Lengths' section below.

Radiator Sizes and Output (Per Section)

Single Section Height	800mm
Single Section Width	61mm
Single Section Depth	215mm
BTU ∆T 50˚C	396
Watts ∆T 50˚C	116

Other Heat Outputs

	800mm
BTU ∆T 60˚C	502
Watts ∆T 60˚C	147
BTU ∆T 30˚C	215
Watts ∆T 30˚C	63

DELTA ∆T 30˚C Best Used for Ground & Air Source Heat Pumps

*The measurements of the radiator stated should only be used as a guide as every radiator is bespoke and hand-built to your specifications. There will be tolerances for seal compression and milled faces so please don't use these exact measurements to fix pipes. Please call us for more information or to discuss your project.

Paladin can supply the radiator in a dark 'Primer' finish, ready for you to paint yourself. If you require a white primer, then there will be a £3 charge per section, so please contact us for a quote.

Why not let Paladin's expert painters finish your look using one of their own 'Painted' Colours, or any of the thousands of RAL or Colour Matches they can do. Alternatively, you can choose one of their 'Painted' Authentic Designer paints from Farrow & Ball & Little Greene, 'Specialised' or 'Polished' finishes to give you a classic, modern or contemporary look.

For any of their unique finishes, please contact us for a price.

View more information about bespoke finishes here...
These radiators will be assembled, painted/polished, and fully tested in Paladin's Lincolnshire, UK workshops. They can be made any length & will be shipped fully assembled up to 1200mm or 200kg.

Larger, longer radiators will be shipped part assembled & you can hire a radiator assembly tool from us if your plumber does not have one. Once joined at home the radiator cannot be retested so no manufacturer guarantee can be offered against the joins or the surrounding paintwork. Touch-Up paint is supplied free of charge as standard to cover the new gasket when joining.
Delivered in around 2-3 weeks, with lead times varying for different finishes. Contact us for up-to-date lead times.

Paladin charge per delivery. There is a surcharge for more remote areas. We also deliver worldwide.

The order will be delivered by a pallet carrier that uses very large vehicles to deliver. If delivery is to be made to a location with restricted access or narrow roads please let us know so a smaller 7.5tonne vehicle (think bin lorry) can be organised.

Please be aware that this is an all-day, pallet delivery which is made kerbside only to the ground floor level of the delivery address. Delivery can take place at any time during the day and you need to make sure that it is safe and legal for the haulier to stop and offload the goods via a tail lift and pallet truck.

Please call first if you need a more accurate delivery date as at certain times of the year delivery may take longer. Please read our T&Cs for full details or contact us with any questions or for a delivery quote for outside the UK.
The size of the radiator and the number of sections you require will depend on the heat output you need to heat your room. This is measured in BTUs (British Thermal Units). Use this simple calculator to work out how much heat you will need.

This is a very basic heat estimator, please contact us for a more in-depth calculation, or download our Design Sheet Form to complete & email to us.
